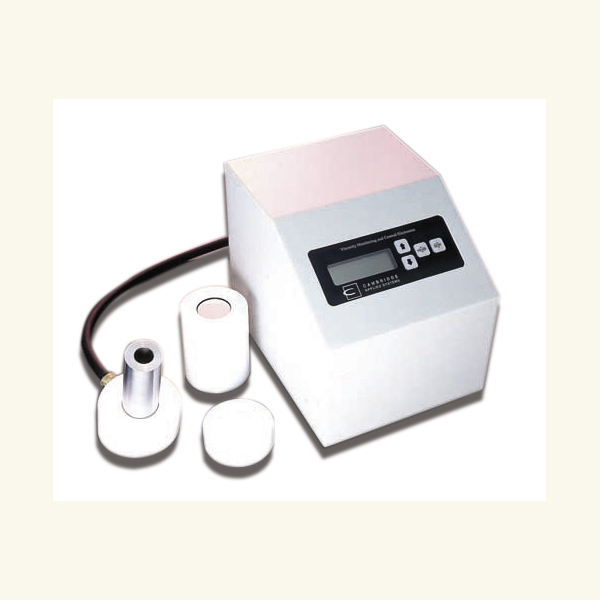

ViscoLab 3000

ASTM D7483 and ASTM D445

The ViscoLab 3000 laboratory viscometer is the ideal choice for measurement when viscosity testing requires the sample material to be tested at specific temperatures. This lab viscometer is used for applications ranging from research and development through quality control, and industries ranging from life sciences to oil analysis, including measuring oil viscosity for VI (Viscosity Index). It is a temperature controlled viscometer incorporating an integrated heater that delivers accurate measurements at user-defined temperatures from slightly above ambient to 356°F (180°C). The temperature range of this viscometer can be extended to -40°C with the optional cooling jacket coupled with an appropriate cooling bath.

Utilizing minimal bench space and providing an easy to read digital display in centipoise or centistokes, the ViscoLab 3000 delivers accurate measurements with a small sample size; less than 2ml of fluid is required.

  • Easy to Use and Maintain
    • Digital displays of centipoise and centistokes
    • Digital temperature display in C or F
    • RS232 Interface
    • Stores up to 40 product specific test set-ups
    • Removable liquid recirculating jacket and cap
    • Automatic cleaning technology due to constantly moving piston
    • Integrated temperature control
  • Enhanced Features
    • Minimizes product waste by requiring less than 2ml of fluid
    • Requires small amount of bench space

  • Diesel:

  • Measures diesel oil from 0.5-10cP at 40C

  • Lube Oils

  • Measures lube oil from 1-20cP at 100C and 25-500cP at 40C

  • Bunker

  • Measures bunker oil from 50-1000cP at 50C

  • Asphalt/Bitumen

  • Measures asphalt from 250-5000cP at 135C and 150C

  • Gear Oil

  • Measures gear oil from 50-1000cP at 40C
