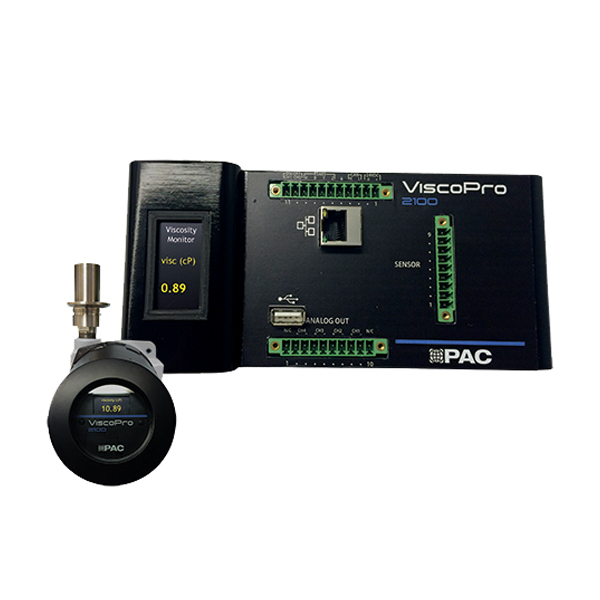

ViscoPro 2100

Designed to Stand Up to the Challenges within the Process Industry

Product Overview Key Features Specs Documentation Resources Request a Quote or Demo

Product Overview

Accurate, Real-Time Viscosity Analysis to Support Critical Decision Making.

Cambridge Viscosity by PAC’s ViscoPro 2100 is designed to stand up to the challenges within the process industry.

With a sensor that is designed to protect itself from outside elements, the ViscoPro 2100 is highly insensitive to the outside environment. Its continuous piston motion means that the ViscoPro 2100 is self-cleaning and can run for years without recalibration.

When measuring the flow of products within a process environment, conditions are often severe – vibration, flow, and varying pressures can impact instrument readings. ViscoPro 2100 features a rugged design to stand up to the challenges within the process industry.

With a small sample size, easy installation, flexible configuration, and minimal maintenance needs, the ViscoPro 2100 is the ideal viscosity transmitter for almost any refinery, petrochemical, or coatings application.

Key Features

Repeatability of 0.5% or 1.5%, depending on your requirements

Self cleaning, with no mechanical linkages means very little downtime

Correlation to ASTM D7483 and ATM D445

Accurate results for difficult applications, up to 375ºC and up to 2,000 ps

Specs

Viscosity Range

0.25-10,000 cP, 11 Ranges in 20:1 spans

Repeatability

CV1 1.5% of reading
CV2 0.5% of reading

Temperature Sensor

PT100

Input Power

24 VDC, all Models

Display

Embedded bright OLED Display
Viscosity, Temperature, Temperature Compensated Viscosity, Quality Indicator

Electronics Ambient Temperature Range

Up to 60°C

Certifications

E1 Models: Safe Area
E2 Models: Class 1 Div 1, Group B,C,D
Class 1 Zone 1, AEx d IIB+H2
Class 1 Zone 1, Ex d IIB+H2
cFM, FM, Ex, IECeX, and CE

Analog Output

CV1 (2) 4-20mA outputs (500 ohm max loop resistance)
CV2 (4) 4-20 mA out

Digital Outputs

CV1 None
CV2 RS485 Modbus RTU (Full Duplex)

Maximum Process Temperature rating

LT Models: Up to 190°C
HT Models: Up to 375°C

Dimensions

DIN 3.3” 9(h) x 7.1”(w) x 4” (d), 84mm(h) x 180mm(w) x 100mm (d)
Ex (w/o sensor) 4.5”(w) x 4.8”(h) x5.7”(d)

Alarm Output

190mA open collector (3V-50VDC)

Wetted Components

Standard 316L/430 Stainless Steel

Other material available upon request

Documentation

Title	Description	PDF
Brochure	ViscoPro 2100 Brochure	Download
Brochure	ViscoPro Configuration Guide	Download
