The EX rated WiO-300K series is a Water Cut analyzer that measures the amount of water in oil to high levels of accuracy. Water Cut is also referred to as water in oil, BS&W, OWD or WFM. The smart sensor technology uses a capacitive method to measure the percentage of water contained within the sample, with a large measurement range from a few 100ppms to 100% water.*

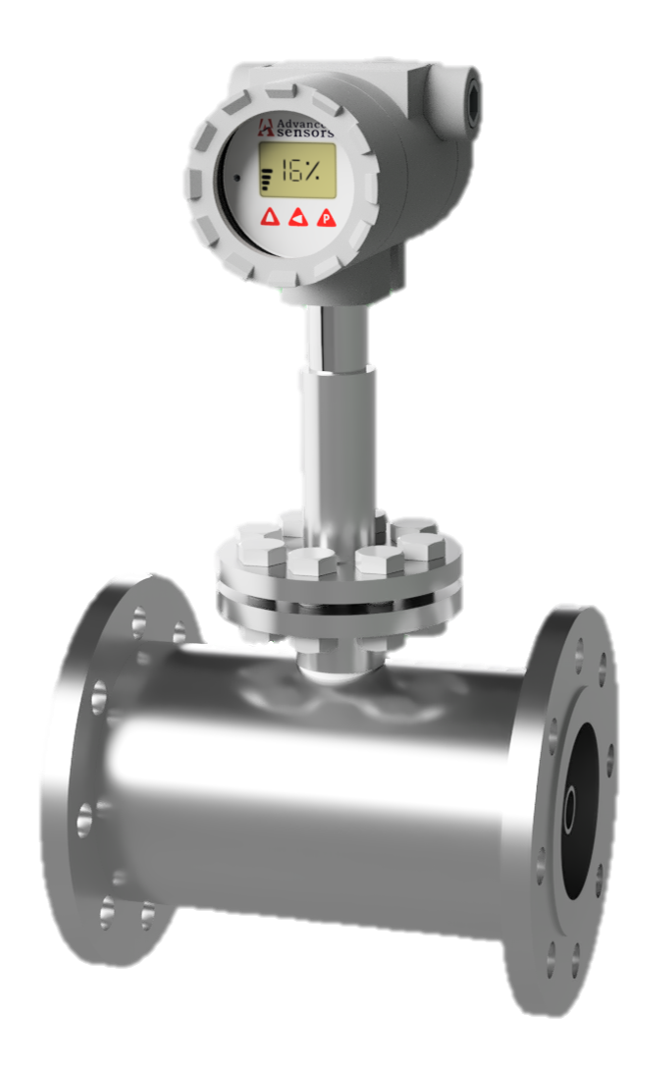

The WiO-300K sensor is a spool section for in-line measurements from 3 to 48 inches. The WiO-300K uses a fully flanged design. This model is made for working pressure up to Class 1500#.
  • High level of accuracy +/-0.05% up to 5% water cut.
  • Large measurement range ppm to 100% water in oil.*
  • Optional static mixer.
  • Spool section.
  • Temperature compensation.
  • 4-20mA and Hart communications.

(* Range will depend on operating conditions; in general, -% for most applications and up to % for example sweet water).
