The EX rated WiO-300S series is a water cut analyzer that measures the amount of water in oil to high levels of accuracy. Water Cut is also referred to as water in oil, BS&W, OWD or WFM. The smart sensor technology uses a capacitive method to measure the percentage of water contained within the sample, with a large measurement range from a few 100ppms to 100% water.*

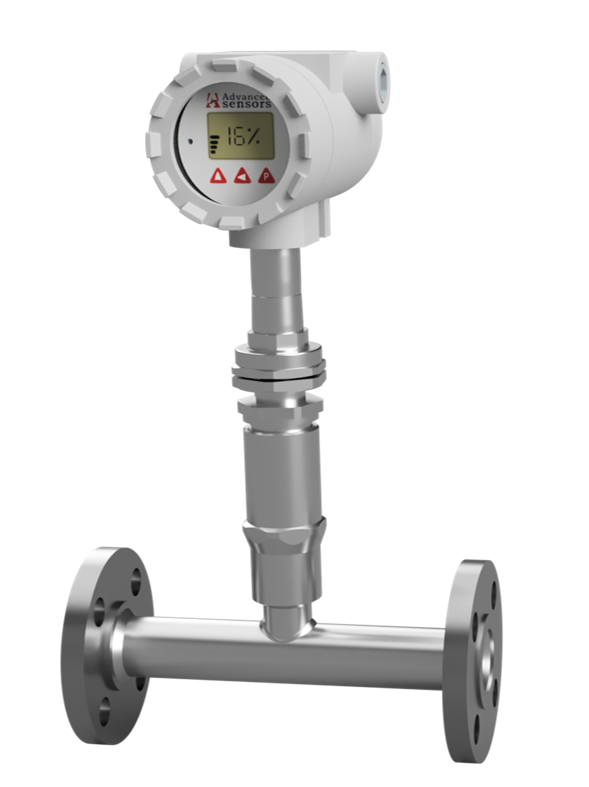

The WiO-300S sensor is a spool section for in-line measurements from 1 to 8 inches. Sizes 1 to 3 inches are available with threaded connections.
  • High level of accuracy +/-0.05% up to 5% water cut.
  • Large measurement range 200ppm to 100% water in oil.*
  • Optional static mixer.
  • Spool section.
  • Temperature compensation.
  • 4-20mA and Hart communications.

(*Range will depend on operating conditions; in general , 0-65% for most applications and up to 100% for example sweet water.)
