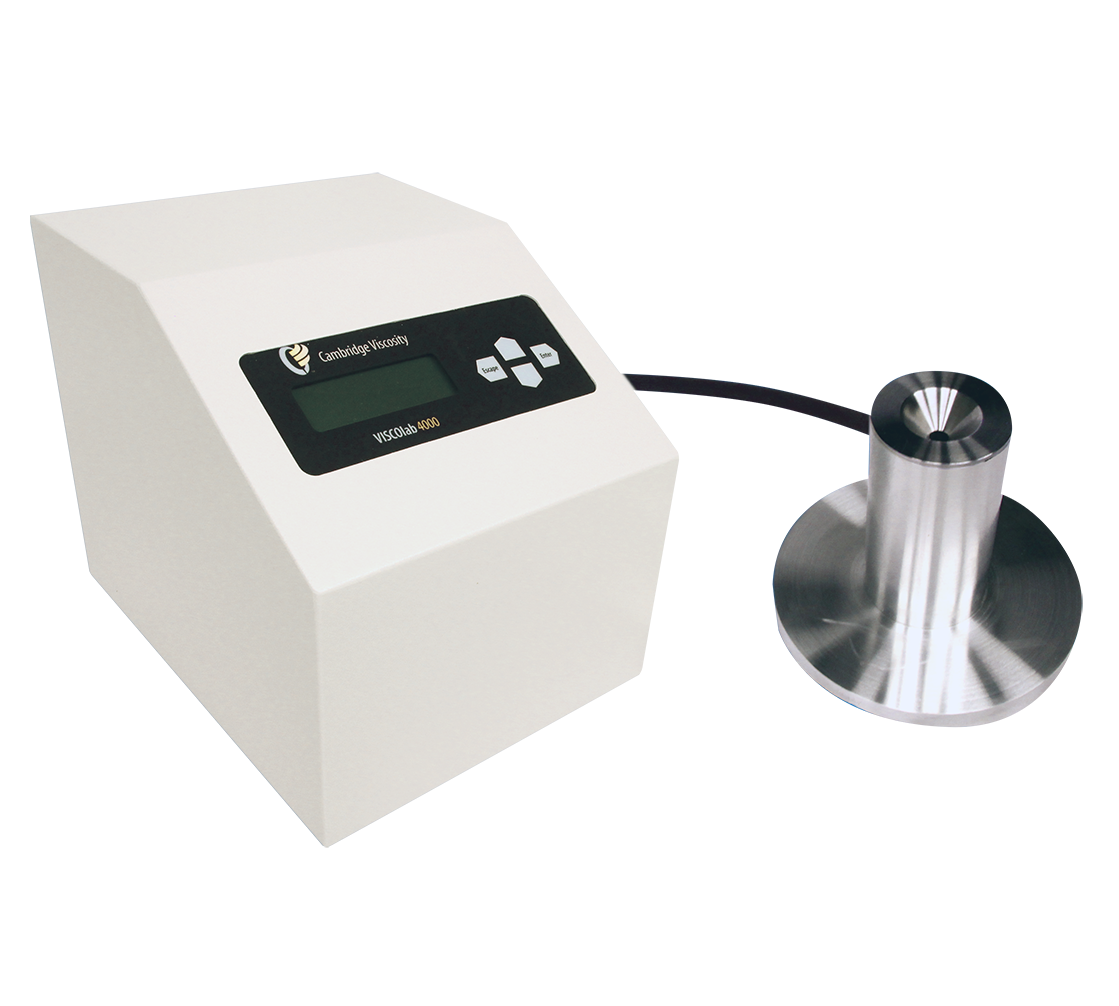

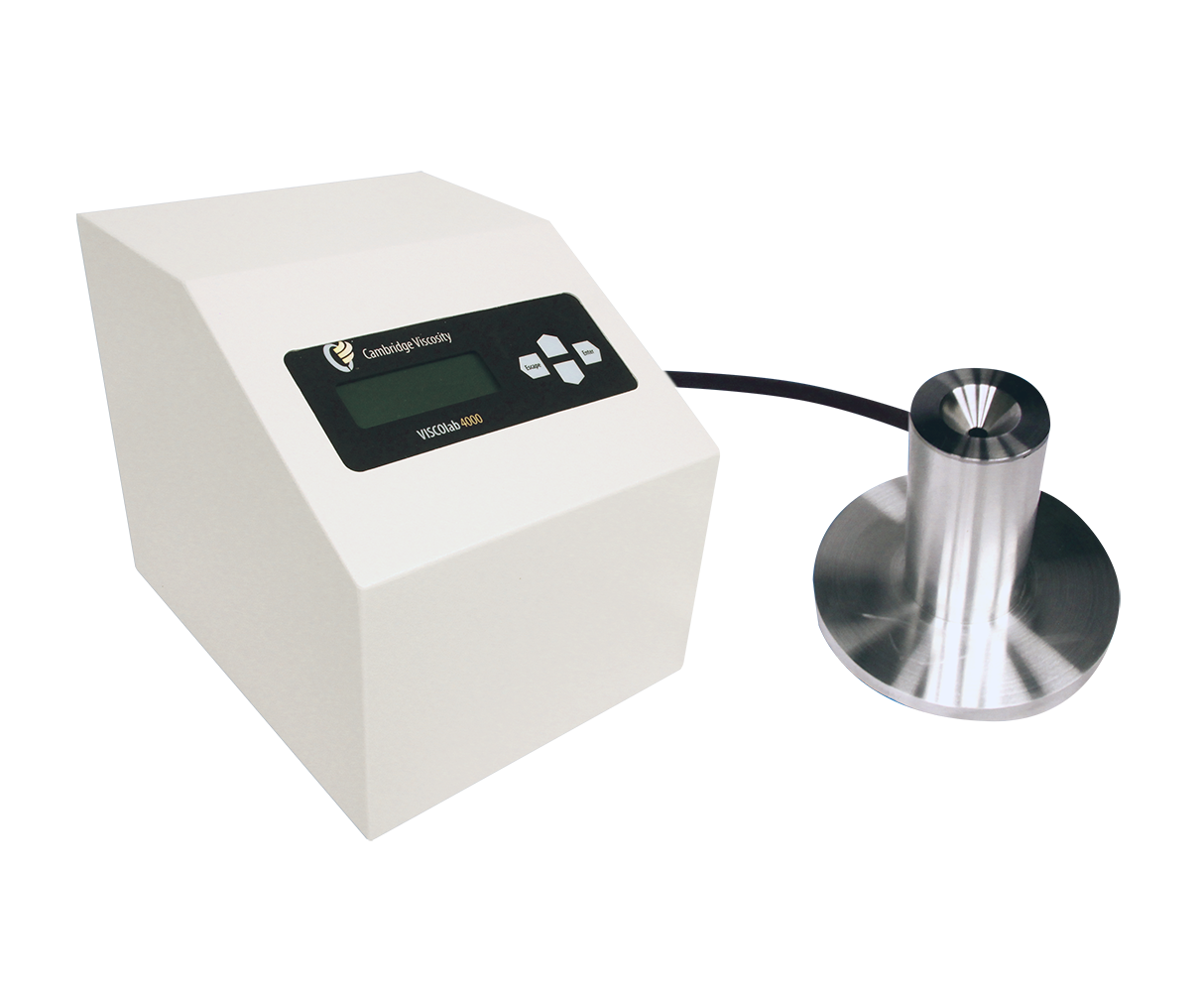

ASTM D445-ViscoLab 4000

State-of-the-Art Solution

With advanced electronics and software, the ViscoLab 4000 is a highly versatile, dynamic viscometer that can meet the needs of a laboratory with complex processes.

Product Overview Key Features Specs Documentation Resources Request a Demo or a Quote

Product Overview

The VISCOlab 4000 Small Sample Viscometer features a piston-style electromagnetic viscometer and embedded PT100 temperature sensor for continuous viscosity and temperature monitoring. With measurements across twelve overlapping 20:1 viscosity ranges, it allows display options in centipoise (cP) or centistokes (cSt) and temperature in °C or °F. The optional liquid circulating jacket extends the operational range from -40°C to 110°C, supporting multiple precalibrated setups.

Internal data logging stores up to 1,000 measurements, easily transferrable to a PC via the RS-232 serial port. The user-friendly electronics enable customization of units and data logging intervals, providing digital readings and statistical insights for enhanced repeatability. Easy to use, clean, and maintain, the VISCOlab 4000 is well-suited for various lab applications with its compact footprint.

Key Features

Accurate and reliable

Requires less than 2ml of fluid

Data averaging

Digital displays of centipoise and centistokes

Specs

Viscosity

0.2 to 10,000 centipoise (cP)

Piston Ranges (12 ranges)

0.2-2cP, 0.25-5cP, 0.5-10cP, 1-20cP,
2.5-50cP, 5-100cP, 10-200cP, 25-500cP,
50-1,000cP, 100-2,000cP, 250-5,000cP,
500-10,000cP

Accuracy

± 1.0% of full scale

Repeatability

± 0.8% of reading

Temperature sensor

4 wire internal platinum RTD

Wetted Materials

316L and 430 stainless steel

Maximum particle size

25-360 microns (range dependent)

Power

100-240 VAC/50-60Hz

Documentation

Title	Description	PDF
Brochure	Maintenance Kit	Download
Brochure	ViscoLab 4000	Download
