State-of-the-Art Solution
The Advanced Sensors S-One is the next generation of its incredibly successful EX range of analyzers for oil in water measurements.
Product Overview

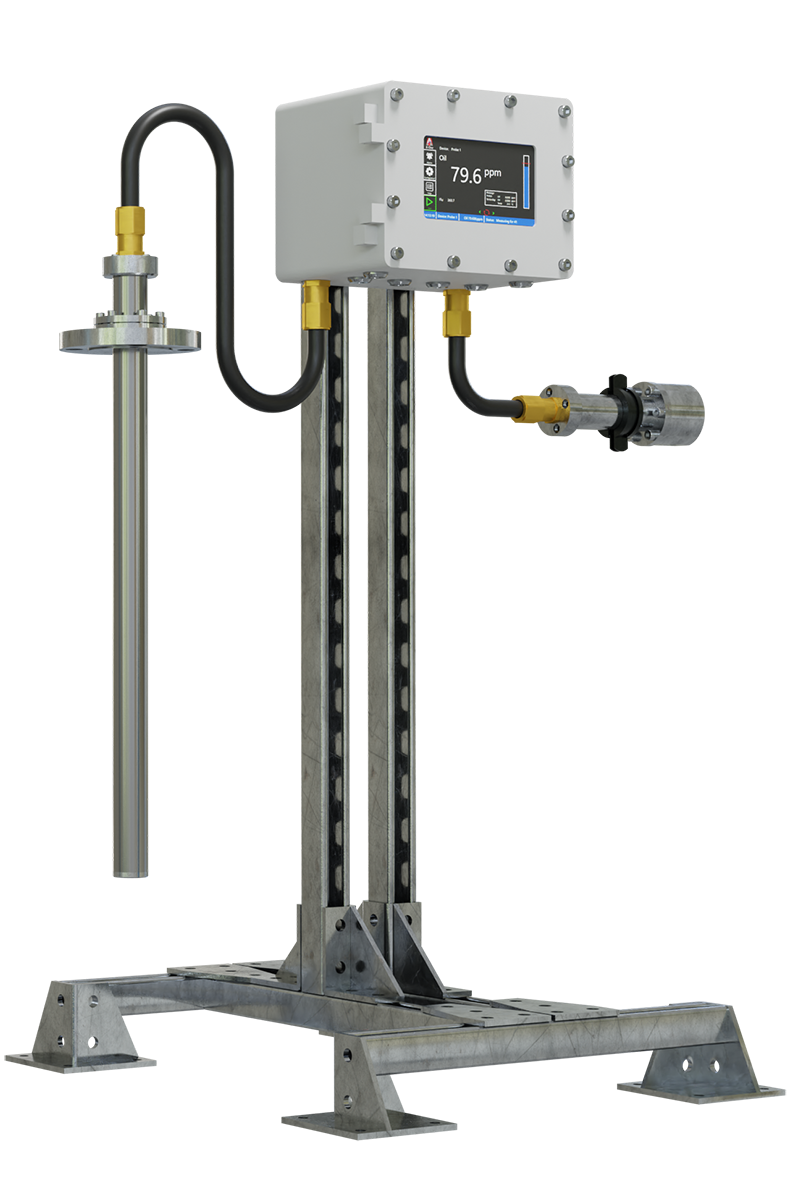

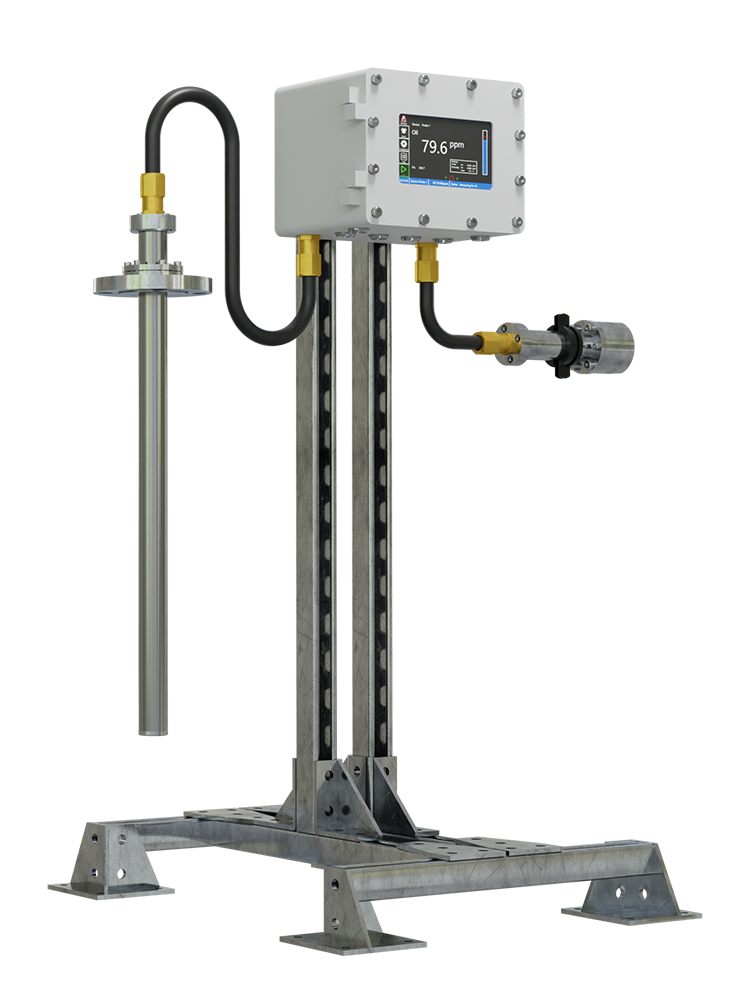

The S-One analyzer, designed for operation in non-hazardous areas, serves as the safe area counterpart to the X-One. Our commitment to excellence is evident in the S-One’s design, as it retains nearly all the outstanding features of the X-One. Bid farewell to measurement uncertainty even in the most complex and challenging produced water environments, as the S-One delivers accurate results with unwavering confidence.
Equipped with state-of-the-art ultrasonic cleaning and long-lasting laser technology, the S-One ensures maximum uptime, guaranteeing that your operations run smoothly without interruption. Our newly enhanced software interface simplifies calibration, data history management, and measurement processes, providing a seamless user experience. But that’s not all – the S-One goes above and beyond by acting as a mini DCS, effortlessly collecting and displaying data from other measurement devices.
From BTEX to heavy crudes, the S-One exhibits exceptional versatility, making it the indispensable next-generation analyzer you can’t afford to overlook. Take your oil-in-water measurement capabilities to new heights with the S-One and embrace the future of advanced analytical solutions.
Key Features
Measure more hydrocarbons
Less downtime
Configured to meet your needs
Specs
Product Specs
Deep UV Fluorescence (S-One-DS & S-One-DP)
Laser Induced Fluorescence (S-One-FS & S-One-FP)
Side-Stream Oil in Water Analyzer (S-One-DS & S-One-FS)
Suitable for BTEX, light oils + condensates
and other hydrocarbons
Enhanced Ultrasonic Cleaning
Total Oil 0-20,000ppm (Oil type dependent)
Accuracy ±1%
Process Temp up to 100°C
Process pressures up to 15 barg
Modbus inputs + outputs
2 x 4-20mA inputs, 4-20mA output
Optional Hart
Optional extended ethernet (remote desktop)
Optional extraction tool (S-One-FP & S-One-DP)
Range of wetted materials
Software

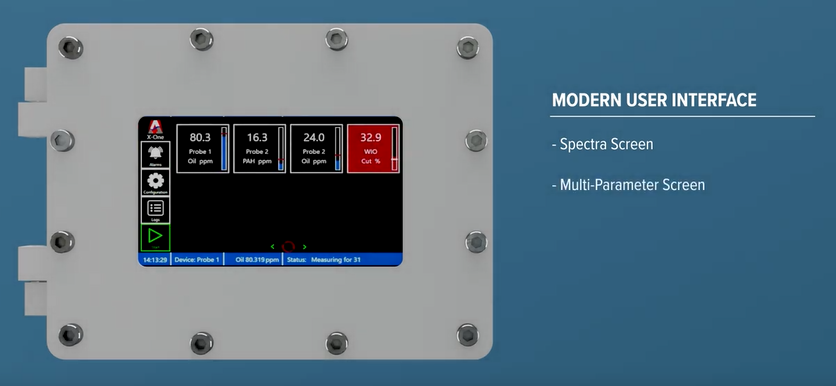

Our goal is to provide you with comprehensive insights into your produced water, and we believe the S-One software platform delivers just that. Its intuitive user interface features animated user screens, eliminating the need for tedious scrolling, while looking beautiful.
Range of in-measurement real time user screens include spectra display, multi-parameter measurement view, multi-parameter trending and singe measurement display.
With powerful software suites for calibration, reviewing historical data and alarms included on the analyser you can review and understand the performance of your produced water like never before.
With guided wizards for parameter set-up and calibration, to the notification bar displaying real-time information on the measurement no matter where you are in the software. The S-One brings the experience and ease of use you expect from a smart mobile device to your produced water system analyser.
