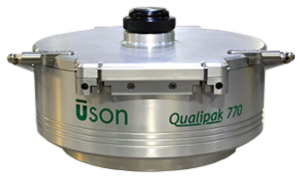

Qualipak 770

The Qualitek 770 is based on the force decay test principle for flexible package testing.
The test principle is a vacuum applied to the chamber, which encourages the pack to inflate. The package infants until the control vacuum is achieved, creating a force onto the load cells. Once the control vacuum has been reached, the chamber is isolated for period of time to allow the package to stabilize. The force is then monitored for a decay. If the force decays at a rate greater than expected, the instrument fails (red light) the part. If the force does not decay then the instrument passes, Accepts (green light) the part.
Max Package Size: Internal chamber size: 355 mm (14 in), circular
Single (WxDxH): 355 mm x 177.5 mm x 80 mm (14 in x 7 in x 3.1 in)
Dual (WxDxH): 177.5 mm x 88.75 mm x 80 mm (7 in x 3.5 in x 3.1 in)

Description: Single or Dual Package Test Chamber
Test Technique: Force Decay
Testing Mode Tolerances: Specified at normal operating conditions of 20°C (68°F), 40%RH ±5% and at standard sea level
Accuracy Levels: Requires instrument quality compressed air input and stable electrical supply of the correct voltage and frequency
Pressure Measurement: Vacuum to 90 psig ±0.3%
Sensor Type: Solid State sensor
Resolution: 0.001% of full scale
User Selectable Pressure Range Units: mbar, mm Hg, in H2O, kPa & Kg/cm2
Pressure range: 0 to -950 mbar (vacuum)
Force Measurement Sensitivity: 10 micron Note: Minimum suggested value to base a pass/fail decision
Force Range: 0 to 50,000 grams
Force Accuracy: ±1.0% of reading, ±0.01% full scale
Force Repeatability: ±15% of reading for a 12 micron hole fitted to the challenge unit. Note: The above tolerance is the typical limit of the most common type installed, in practice the measured accuracy will vary on an instrument to instrument basis. The calibration certificate should be referred to for a precise understanding of any single tester.
Step Timer: +1.0% when measured over a 20 second step
Storage Temperature: -20°C to +70°C
Operating Temperature: 0°C to 40°C
Humidity: 0% to 90% Non-condensing

Power Supply, Test System: 95 to 265 VAC, 45 to 65 Hz
Dimensions: WxDxH:
Closed: 470 mm x 470 mm x 260 mm (18.5 in x 18.5 in x 10.2 in)
Open: 470 mm x 470 mm x 640 mm (18.5 in x 18.5 in x 25.2 in)
