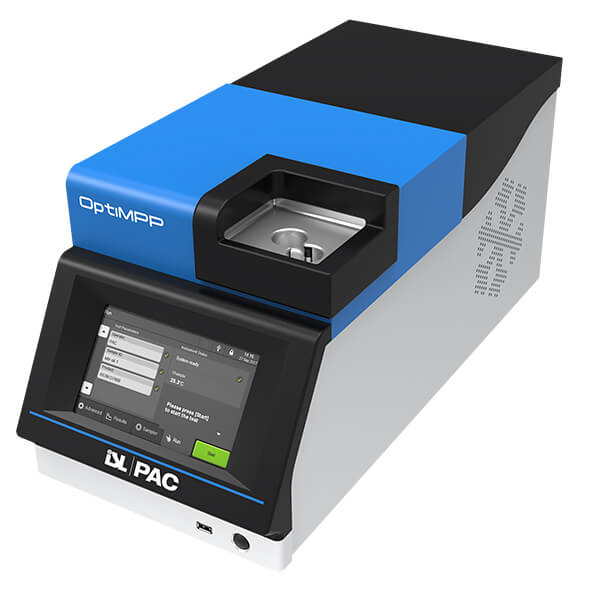

OptiMPP: Mini Cloud & Pour Point
Easy, Accurate, and Reliable Cloud & Pour Point Determination (Mini Method)
State-of-the-Art Solution
The world’s only automatic pour and cloud point analyzer with an integrated autosampler and no cleaning required that significantly increases lab productivity and improves profitability by providing quick, precise results
Product Overview
Designed to provide highly accurate cloud and pour point temperatures of petroleum products during cooling, ISL’s automatic Mini Cloud Pour Point Analyzer is compact, portable and delivers fast results (30C in less than 30 minutes, and quick pour point correlation with no flow @ 0.1C determination).
OptiMPP’s powerful built-in cooling system with selectable cooling profiles requires no special programming or prior cloud and pour point measuring test knowledge. Through an innovative design, OptiMPP does not require any cleaning so it is an ideal instrument for testing heavy and hard-to-clean samples. With a built-in 20 positions autosampler and extremely low sample volume of 0.5 mL, OptiMPP significantly increases lab productivity while reducing operating costs.
Proven to provide highly precise measurements, OptiMPP’s ASTM D7346 no flow point and pour point method, and ASTM D7689 cloud point method are all approved test methods in ASTM’s diesel (D975), biodiesel (D6751) and biodiesel blends (D7467) specifications.
Benefits:
- Cloud and Pour Point determination in one single test run and less than 35 minutes
- Accuracy and Precision with perfect correlation with D97 and D2500
- Integrated 20 sample autosampler
- No cleaning required – time saving and no cross-contamination risks
- 1°C resolution for no flow point and cloud point determination
- Small Volume – Only 0.5ml of sample usage
- Compact design with built-in cooler system
- Ultra low temperature testing down to -95C without any external liquid or gas connection
- Built in QC-Chart for trend monitoring
- Improved Productivity and Ease of Use With a New Touch-Screen and Advanced Electronics
Key Features
Cloud and Pour Point determination in one single test run
Accuracy and Precision
Integrated 20 sample autosampler
No cleaning required
Small Volume - Only 0.5ml of sample usage
Compact design with built-in cooler system
Ultra low temperature testing down to -95C
Built in QC-Chart for trend monitoring
New Touch-Screen and Advanced Electronics
Specs
Standard Test Methods
Cloud Point: ASTM D7689 ,ASTM D2500 (IP 219), ISO 3015, JIS K2269 equivalent or better
Pour Point & No Flow Point: ASTM D7346 ,ASTM D97 (IP 15), ASTM D5853, ISO 3016, JIS K2269 equivalent or better
Repeatability & Reproducibility
Pour Point:
Repeatability: 0.0221 (50 – X) ºC @ 1 ºC, 0.0384 (50 – X) ºC @ 3 ºC
Reproducibility: 0.0411 (50 – X) ºC @ 1 ºC, 0.535 (50 – X) ºC @ 3 ºC
No Flow Point:
Repeatability: 1.93 ºC
Reproducibility: 2.62 ºC
Cloud Point:
Repeatability: 0.0206 (30 – X) ºC
Reproducibility: 0.0561 (30 – X) ºC
Operation
Detection:
Cloud Point: Optical detection
Pour Point: Pressure differential
Cooling System: Internal Stirling Cooling, Linear cooling profiles according to method
Test Interval: Continuous 0.1°C , Pour point: programmable 0.1 to 5°C resolution
Sample Loading: Automatic – Integrated sample changer (capacity for 20 samples)
Application Range
Temperature Range:
Sample: – 95 to +51⁰C
Measurements
Sample Temperature: Accuracy: 0.1°C
Automatic calibration of measurement circuit and 2 to 10 point probe correction table.
Documentation
Display: Screen size 7” (16/9) with resolution (800×480); resistive touchscreen with real time graphic display
Printing: Detailed detection curve tracking of fuel behaviors during the test; can be printed as part of test report.
Detailed test report in °C with date & time stamped, sample information, test conditions, apparatus serial number
Result Documentation: 200 test runs (results) and 40 products
QC-Functions: Automatic QC-sample handling and QC-Chart
Interface
User Interface: 7” color touch-screen (16:9 display, 800×480 res.), Virtual Keyboard. Languages: English, German, French
Printer: The list of compatible printers that are proven to work successfully are as follows:
By USB: Brother HL-3170 CDW, Lexmark CS 310, Ricoh SP C250N, HP OfficeJet Pro 8120, Brother HL-L5000D
By Ethernet: Ricoh Aficio SG 3110dn, HP Color LaserJet Pro M425dn
LIMS interface: Ethernet or RS232, Used defined Data String, Automatic LIMS transfer
Data Export: USB Memory Stick, Import into Excel
Password Protection: Different Access levels for Operator, Service or Lab Manager
Calibration & Diagnostics: User defined Calibration Intervals, Automatic Diagnostic functions
Accessories: Barcode Reader, Printer
Utility Requirements
Electrica: 90V to 240VAC ±10% switchable; 50-60Hz ; 300W
Ambient Conditions: Temperature: max. 10° to 40°C; recommended 15° to 25°C
Humidity: 80% rel. at 35°C
Storage temperature: -15 to +55°C
Dimensions: 25 cm (10”) wide, 60 cm (24”) deep, 28 cm (11”) tall
Weight: 31kg, (68 lb)
