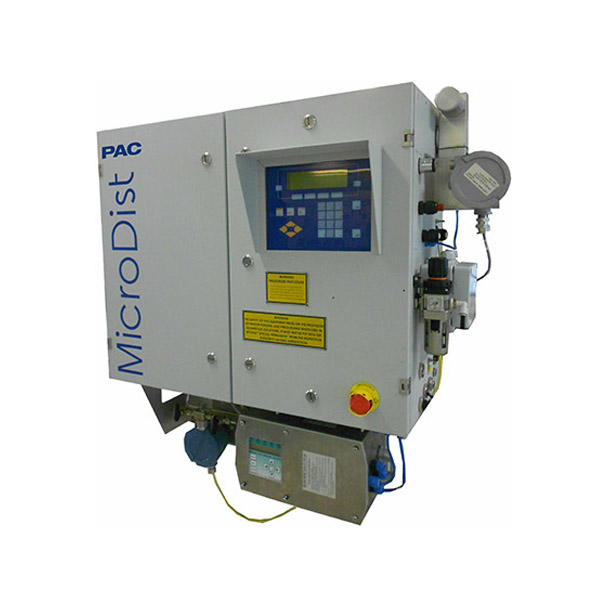

ASTM D1655-MicroDist

Test Methods Standards: ASTM D86, ISO3405, IP123, Cetane Index in accordance to ASTM D4737 and ASTM D976 (procedure A & B); Cetane Index Application: Capability to measure density (API) and Cetane Index

Measurement Cycle Time: Less than 10 minutes; Measurement/Temperature Range: Full boiling point curve 20 – 425 ºC (68 – 797ºF); Repeatability: +/- 1.5°C (equal or better than ASTM D86); Accuracy: Distillation accuracy: better than D86, IP-123, ISO 3405 Density accuracy: +/-0.0005g/ml; Resolution: +/- 0.1°C

Consumption: <2L/hr (sample should be homogenous, single-phase with no water content); Return Pressure: Atmospheric to < 8 bar or 120 psig (1.4 bar or 20 psig less than supply) Sample flow rate 10-20 L/ hour (application dependent); Temperature Min. 15ºC below IBP without cooler – Max. 30 ºC above IBP, (application dependent) with cooler; Pressure 2 – 10 bars (30-145 psi)

Dimensions Depth: 398 x Height: 925 x Width: 1000 mm (15.7 in. X 37.3 X 39.4 inches);
Weight 75 kg (165 lb.) ; 80 kg (176 lb) with optional density meter; Operating Temperature 5ºC to 40°C (41 to 104°F); Area Classification NEC Class 1 Division 2 Groups B, C & D, CSA or ATEX Certified , Ex II 2 G Ex db pxb IIC T4 Gb , Ex II 2 (2) G Ex db pxb [ib] IIC T4 Gb (density meter option); Power 115 VAC/6A max, 50/60Hz, 700W; 230 VAC/3A max, 50/60Hz, 700W; Cabinet Purge Gas Air Flow > 150 l/min (5.3 SCFM), pressure 4 – 10 bars (58 – 145psi) Inert Gas Nitrogen, inlet pressure 3-10bars (43 – 145psi), purity > 95% ; Installation Site Avoid direct sun light and provide rain-proof shelter for outdoor installation ; Flame Arrestors (2) IIA standard

Analog Output Signal Isolated (4) 4-20mA outputs for selected distillation cut point values; Digital Input/Outputs 8 digital inputs, 8 digital outputs, user assignable, optional 4 additional outputs; Serial Input/Outputs Single RS232 or RS485 bi-directional, Modbus for full curve or Ethernet TCP/IP
