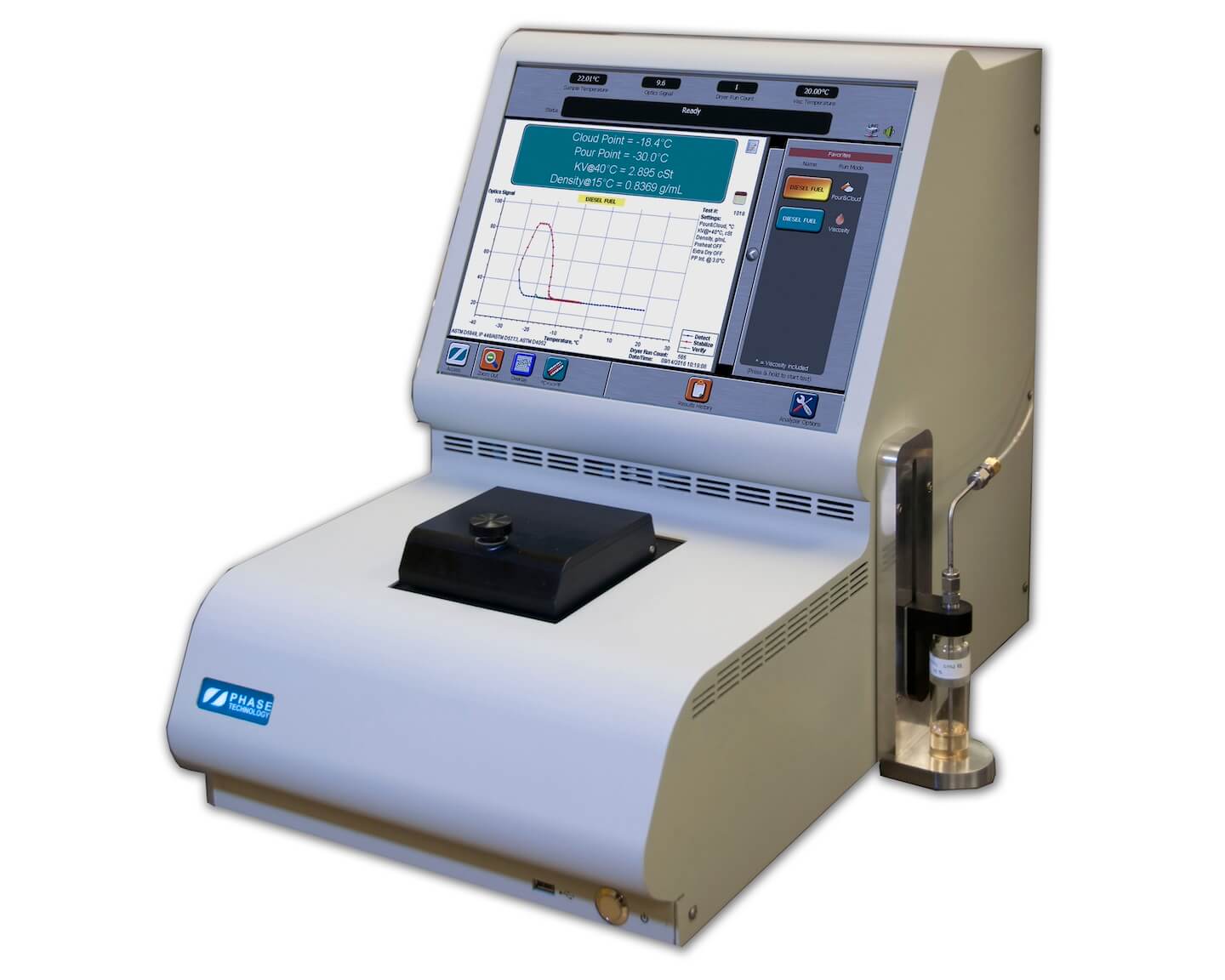

DFA-70Xi
Diesel Fuel Analyzer: Cloud, Pour, Viscosity & Density
State-of-the-Art Solution
Phase Technology’s DFA-70Xi diesel fuel analyzer is the world’s first and only instrument that performs four important tests in one single unit—cloud point, pour point, viscosity and density. And, it does it all in less than 25 minutes!
Product Overview
Phase Technology’s DFA-70Xi diesel fuel analyzer is the world’s first and only instrument that performs four important tests in one single unit—cloud point, pour point, viscosity and density. And, it does it all in less than 25 minutes!
The DFA is also available as a 5-in-1 analyzer, adding freezing point for jet fuel. That makes it the most versatile analyzer in your lab!
The DFA-70Xi features a side loaded automatic sample injection port. There’s no longer a need to manually pipette. The analyzer always draws the precise amount of sample as required by the ASTM method.
The DFA-70Xi is completely self-cleaning, without the need of solvents. Save time and hassle of cleaning, and avoid any risk of damage to the sample cup.
With an unsurpassed precision, DFA-70Xi’s ASTM D5773 cloud point method, ASTM D5949 pour point method, and ASTM D7945 viscosity method are all approved test methods in ASTM’s diesel (D975), biodiesel (D6751) and biodiesel blends (D7467) specifications.
The DFA-70Xi is also available with a 48-station autosampler, which allows unattended testing. Users can initiate 1 to 48 runs in a row, then walk away and let the analyzer do the rest.
Key Features
Super fast speed
Advanced viscosity capability
Approved for diesel & biodiesel certification
Automatic sample input – No pipette required
Self cleaning – no solvent required.
No external chiller – Quiet, cool, self-contained thermoelectric cooler
No breakable glassware with internal capillary system
Superior precision with best measured repeatability and reproducibility
Specs
Test Methods & Precision
Standard Test Methods:
Cloud Point: ASTM D5773 (IP 446), ASTM D2500 (IP 219/ISO 3015) equivalent or better
Pour Point: ASTM D5949, ASTM D97 (IP 15/ISO 3016) equivalent or better
Kinematic Viscosity: ASTM D7945 @ 40°C, ASTM D445 (IP 71/ISO 3104) equivalent or better Density: ASTM D7777, ASTM D4052 (IP 365/ISO 12185) @ 15°C correlation
Repeatability & Reproducibility
Cloud Point: Repeatability: 1.3 ºC Reproducibility: 2.5 ºC
Pour Point: Repeatability: 1.6 ºC @ 1 ºC, 2.2 ºC @ 3 ºC Reproducibility: 3.2 ºC @ 1 ºC3.8 ºC @ 3 ºC
Kinematic Viscosity: Repeatability: 0.5% @ 40°C Reproducibility: 0.8% @ 40°C
Density: Repeatability: 0.006081 (1000 – x) kg/m3 Reproducibility: 0.008545 (1000 – x) kg/m3
Bias: 0 (relative to ASTM manual methods)
Operation
Detection: Diffusive Light Scattering (DLS) technology for freeze point Horizontal capillary with motive force for viscosity
Cooling System: Integrated Peltier device cooling system Linear cooling profiles according to freeze point test method
System Cleaning: Automatic flush cycle, no solvent required
Application Range
Cloud & Pour Point Temperature Range: Sample: – 80 to +70°C , °C or °F (user selectable)
Test Resolution: 0.1°C
Measurements
Sample Size: 0.15 mL required for test minimum, 20 mL including cleaning
Test Duration:
Cloud Point & Density combined: 5 to 10 minutes
Viscosity & Density combined: 10 minutes
Cloud, Pour, Viscosity & Density combined: 25 minutes
Required Operator Time : 0.25 minutes
Documentation
Printing Label printer: Detailed test report in °C or °F with date & time stamped, sample information, test mode
Full-size printer: Detailed detection curve tracking of fuel behaviors during the test; can be printed as part of test report.
Internal Memory: Storage up to 5000 test runs
QC-Functions: Automatic QC-sample handling and QC-Chart
Interface
Display: Full-color, touch-sensitive, 15” high-resolution LCD screen with virtual keyboard. Languages: English, Chinese
Printer: USB interface for label printer or full-size HP/PCL printer
LIMS interface: Ethernet or RS232, Automatic LIMS transfer
Data Export: USB Memory Stick, Import into Excel
Password Protection: Different access levels for Operator, Manager, Service
Diagnostics: Automatic diagnostic functions
Accessories: Barcode Reader, label printer
Utility Requirements
Electrical: 90V to 260 VAC; 47-63Hz; 350W
Ambient Conditions: Temperature: max. 10° to 30°C; extremes not recommended
Dimensions: 54.6 cm (21.5”) deep x 33.7 cm (13.25”) wide x 44.5 cm (17.5”) high
Weight Unit: 24 kg (53 lb.) Boxed: 28 kg (62 lb.)
Consumables
Documentation
| Title | Description | |
| Brochure | Phase Technology DFA-70Xi Brochure | Download |
